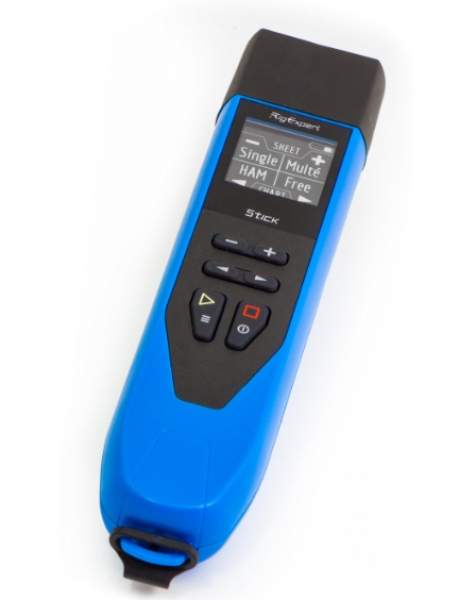

Stick 230 Analisador de Antena VHF

RigExpert

  • Stick 230 Analisador de Antena  VHF
  • Stick 230 Analisador de Antena  VHF
  • Stick 230 Analisador de Antena  VHF
  • Stick 230 Analisador de Antena  VHF
R$ 2.560,00
á vista R$ 2.355,20
Disponibilidade: Sob Encomenda. No momento não possuímos este produto em estoque. Caso você deseje fazer o pedido deste produto o mesmo será fornecido sob encomenda. Por favor, consulte o prazo de entrega pelo e-mail sac@radiohaus.com.br antes de fazer o pagamento
Calcular frete
Calcule o frete:

Parcelamento com PagSeguro

1x R$ 2.560,00
2x R$ 1.280,00 (sem juros)
3x R$ 853,33 (sem juros)
4x R$ 640,00 (sem juros)
5x R$ 512,00 (sem juros)
6x R$ 462,44 (com juros)
7x R$ 400,89 (com juros)
8x R$ 354,76 (com juros)
9x R$ 318,90 (com juros)
10x R$ 290,24 (com juros)
11x R$ 266,81 (com juros)
12x R$ 247,31 (com juros)
13x R$ 230,82 (com juros)
14x R$ 216,70 (com juros)
15x R$ 204,49 (com juros)
16x R$ 193,81 (com juros)
17x R$ 184,41 (com juros)
18x R$ 176,06 (com juros)
Juros de 2.35% ao mês - *Parcelamento em 18x disponível para algumas bandeiras de cartão, de acordo com a política do Pagseguro

Stick 230 Analizador de Antena  VHF



The analyzer is designed for measuring SWR (standing wave ratio), return loss, as well as other parameters of cable and antenna systems in the range of 100 kHz to 230 MHz.

It is the world’s first antenna analyzer capable of 16 hours of continuous measurements without battery recharging.

Small, handy and powerful vector network analyzer is designed for measuring most useful parameters of cable and antenna systems in the range of 100 kHz to 230 MHz. Compared with the other devices the Stick is the State-of-the-Art Antenna & Cable Analyzer. Because it has Key benefits: less size you obtain, less weight you carry, less time you measure.

Specifications

Frequency range: from 0.1 to 230 MHz
Frequency input step: 1 kHz
Measurements for 25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm systems
SWR measurement range: from 1 to 100 in digital mode, from 1 to 10 in graph modes
Range R and X: 0… 10000, -10000… 10000

Operating modes:
SWR, Return loss, R, X, Z, L, C, magnitude and phase angle at one frequency.

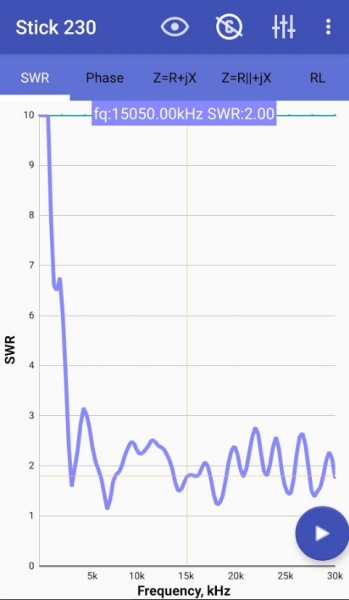

SWR chart, 100 points.
Multé mode – for quick testing of a multi-band antenna.

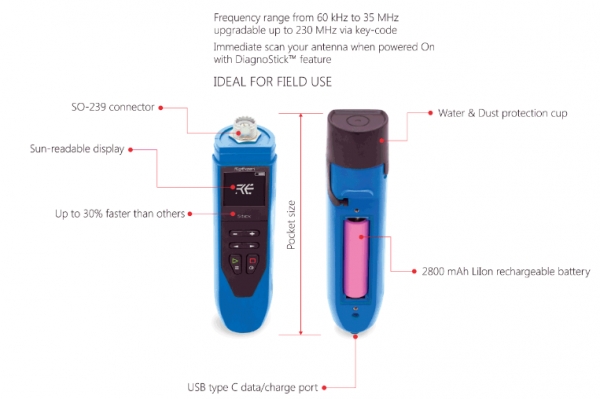

HF output:
Connector type: UHF (SO-239).
Output signal shape: square, from 0.1 to 230 MHz.
Output power: -10 dBm (at a load of 50 Ohms).

Power:

One lithium-ion battery 3.7 V type 18650
When the analyzer is connected to a PC or DC adapter with a USB connector, it receives power from these sources

Interface:

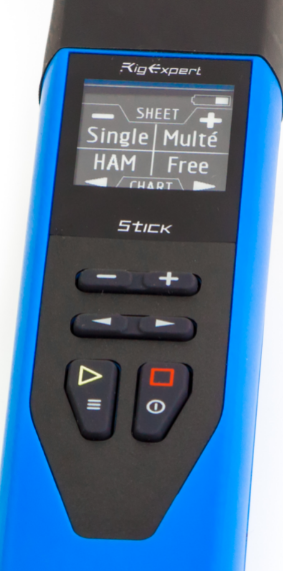

Monochrome electronic paper display with a size of 200 × 200
2 × 3 keys on the waterproof keyboard
English menu and help screens
USB connection to a personal computer

Bluetooth: v.4.2 BLE Single Mode, Class B
Dimensions: 185 mm x 40 mm x 33 mm (7.3 inches x 1.6 inches x 1.3 inches)
Operating temperature: 0 … 40 ° C (32 … 104 ° F)
Weight: 185 g (6.5 ounces) with battery
Warranty: 2 years
GTIN-13: 4820185420259

RigExpert Stick is made in Ukraine.

* All specifications are subject to change without notice or obligation.
